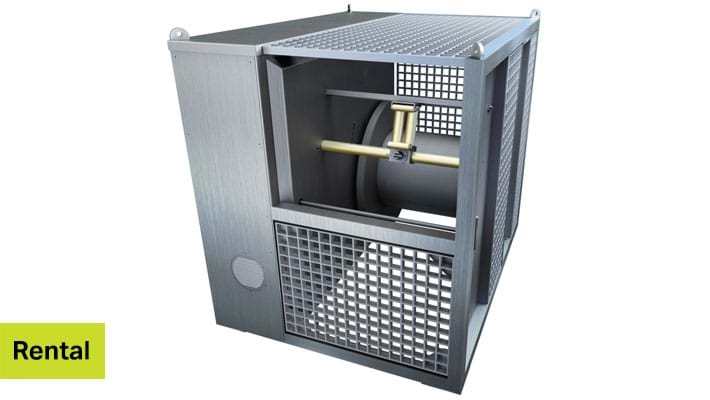

OceanEnviro 4.6

Supplier:: EIVA
Product no :: E.OE.46-R

High-quality and cost-effective electrical winch for deployment of oceanographic and hydrographic equipment

Whether you are looking to tow sonars, magnetometers, etc, or to vertically deploy equipment such as ADCPs, CTDs and the like, the OceanEnviro^TM product range will fit your exact needs.

The OceanEnviro^TMhas a product range which offers you six different high-quality and cost-effective winches, so by choosing the exact size and features you want, you save both money and deck space. In addition to the 4.6 model you see here, the following OceanEnviro models are available for rent:

This product is also available for sale

Request rental price Get in touch

Cost-effective solution tailored to your needs
By choosing the exact size and features you want, you save both money and deck space.
Learn more
Cost-effective solution tailored to your needs
The OceanEnviro^TM product range offers you maximum tow cable lengths ranging from 600 metres to 3,400 metres, drum diameters from 250 millimetres to 490 millimetres, and motor power from 1.5 kilowatts to 10.4 kilowatts – just to mention a few of the options available through the six models.
The combination of an electronic level wind and a slip ring unit for the tow cable makes for better winch performance and minimum wear and tear. The frame and plate components protecting the winch are made of AISI 316 marine stainless steel, which vastly reduces the risk of corrosion. This means that by choosing an OceanEnviro^TM winch you get a cost-effective solution.
Product with proven track record
The OceanEnviro^TM is the new generation of winches manufactured by Sepro Technology AS. The product range is the result of a partnership between winch specialist Sepro Technology AS and EIVA, whose combined expertise selling hundreds of winches guarantees you a proven product, optimised with the newest technology.
Looking for a complete solution?
With our wide range of optional extras, we can offer you all the components of a complete winch solution for oceanographic and hydrographic surveys, from A-frames to sheaves and tow cable to a service kit.
Learn more
Looking for a complete solution?
With our wide range of optional extras, we can offer you all the components of a complete winch solution for oceanographic and hydrographic surveys, from A-frames to sheaves and tow cable to a service kit.
By combining the standard components of the OceanEnviro^TMsolution with a wide range of optional extras, we offer you all the components of a complete winch solution for your next oceanographic or hydrographic survey task.
Standard components
Electrical level wind with speed/metre counter
PLC control
Remote control, 4" touch screen, incl 10 m deck cable
Electrical slip ring
AISI 316 marine stainless steel frame and plate components
Fibre security grating
Truck lift pockets (OceanEnviro^TM 10.4 and 10.4 LV only)
Crane lift points
Tarpaulin for storage

Optional extras

Tow cable
Tow cable termination
Longer deck cable for remote control
Sheave
A-frame
Active winch control via ethernet communication
External output of cable length via ethernet communication
Service kit with wear parts

Services available

Spooling of cable onto winch
Moulding and mounting of cable termination

Safety
The electrical installations and security grating are CE-approved.
	Standard
Overall dimensions
Depth	1,250 mm
Height	1,195 mm
Width	1,100 mm
Drum diameter	400 mm
Flange diameter	700 mm
Drum length	443 mm
Performance
Line pull 1 layer	6 kN
Speed 1 layer at 50 Hz	28 m/min
Speed 1 layer at 60 Hz	32 m/min
Motor size	4/4.6 kW
Supply voltage	440/400 V - 50/60 Hz
Weight with the cable (approx)	850 kg
Construction structural material	AISI 316
Slip ring	Yes
- prepared for Focal 180 or similar
Remote control IP 56	4" Siemens touch screen
Level wind	Electrical
Cable status info	Incl in the remote control package
Other
Tarpaulin for storage	Yes
Cable diameter [mm]	Cable length [m]	Pull top layer [kN]
12.65	550	4.1
